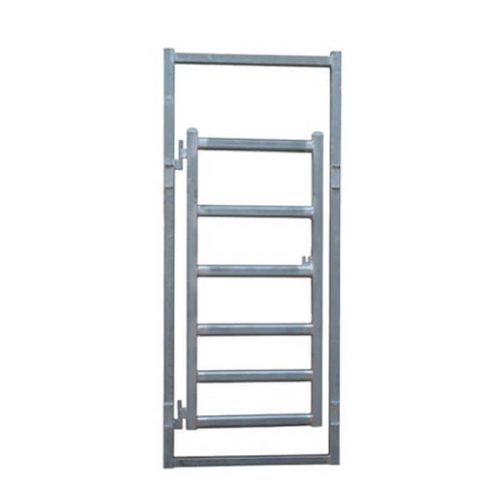

Swing Race Gate

1/4

Description

Race gates are manufactured to a specific length to provide an internal race width of 660mm for both single and double races. They can be installed at the ends of the race, as well as midway to provide shorter sections in the race. Race widths can also be customised to suit your application. Our Swinging Race Gate has 6 – 80×40 rails and heavy duty 50x50x2.5mm external frame and chain latch.

Features

✓Internal race width of 660mm for both single and double races
✓6 × 80×40 rails
✓Heavy duty 50x50x2.5mm external frame

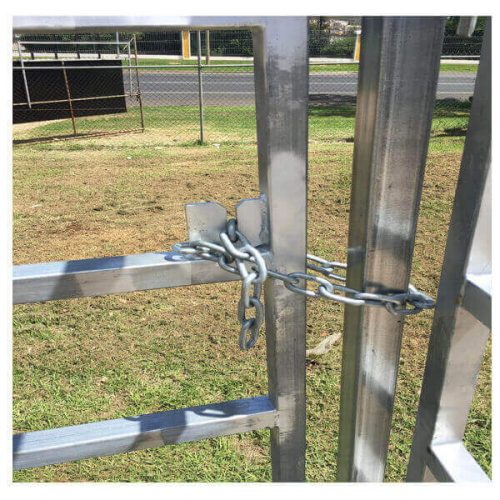

✓Chain latch
✓Race widths customisable

Email Us

Specification

Product Name	Swing Race Gate
Product Size	850mm Length × 2200mm Height
Vertical Frame Posts	50×50×2.5mm Hot Galv Square Pipe
Inner Panel-Side Posts	50×50×2.0mm Pregalv Square Pipe
Inner Panel-Rails	80×40×2.0mm Pregalv Oval Pipe
Net Weight	50kg
Component	1 × 750mm long chain × 8 U brackets × 8 Pins
