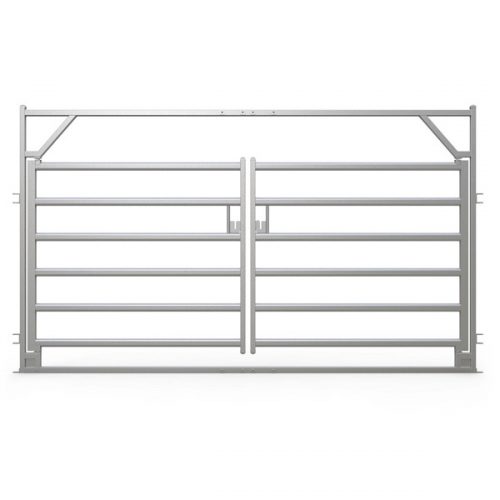

Heavy Duty Double Cattle Yard Gate
1/4
Description

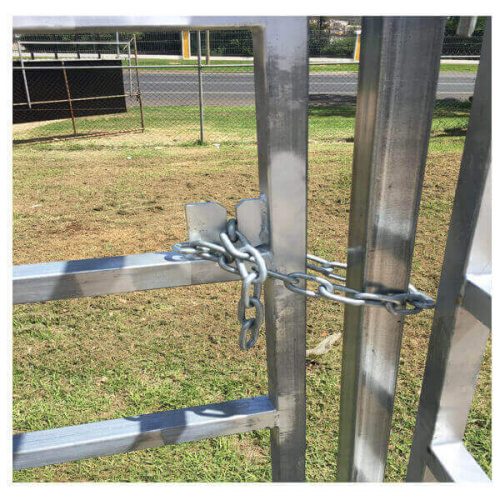

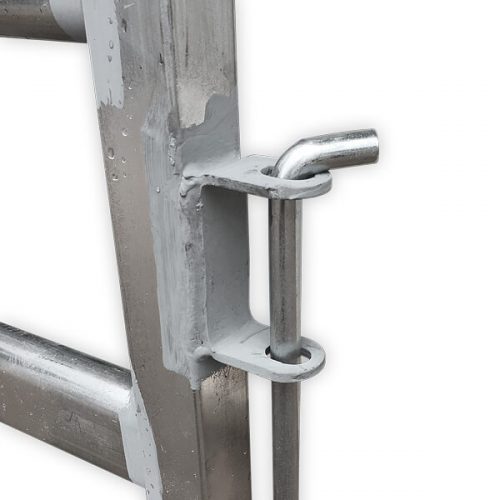

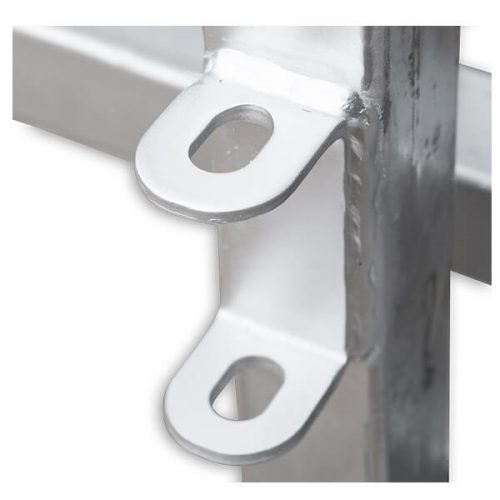

This Model Cattle Yard Double Gate Weights about 140kg. our cattle panels and gates are made from heavy galvanised steel. it is available with a post to concrete in the ground or in heavy duty frames to pin to the cattle panels. All our cattle double gate frames have corner braces and are made with heavy wall steel. Double entrance gates are supplied with one 750mm long chain so they can be chained back to an adjoining panel to facilitate stock entrance. it still come with 4Pcs U Bracket and 4Pcs Pins.
Features
- ✓Mitre Cut and welded for strength (not straight cut or bent)
- ✓Gusset braced to maintain frame square
- ✓Gate swings back 180 degrees to follow cattle flow
- ✓Slam catch is standard on all gates under 4.1m
- ✓Supplied with 1 × 750mm long chain, 4Pcs U Bracket, 4Pcs Pins
Contact us now for a heavy duty double cattle yard gate to suit your operation.
Email UsSpecification
| Product Name | Heavy Duty Double Cattle Yard Gate |
| Product Size | 4095mm long × 2550mm height |
| Material for out frame | 50×50×25mm Hot Galv pipe |
| Material for inner gate post | 50×50×2mm pregalv pipe |
| Material for inner gate rails | 80×40×2 pregalv oval pipe |
| Material for top rails on outer frame | 100×50×3 black pipe and then hot galvanization |
| Net Weight | 140kg |
| Lock Pins | 1 × long chains × 4Pcs U Bracket × 4Pcs Pins |
